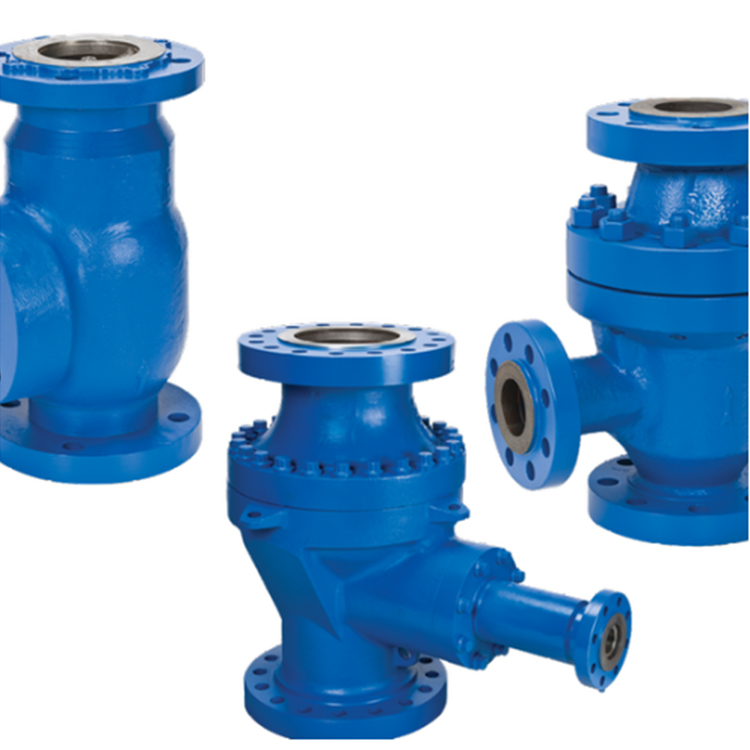

Yarway Series 9200, 9100, 5300 and BPR ARC Pump Protection Valves

Self-contained, low maintenance and reliable automatic recirculation control (ARC) valves engineered to protect centrifugal pumps against thermal damage and destruction

Specification

item	value
Warranty	3 years
Type	Metal Check Valves
Place of Origin	China
	Shanghai
Brand Name	Yarway
Model Number	Series 9200
Application	General
Temperature of Media	Normal Temperature
Power	Pneumatic
Media	Base
Structure	Check
Valve size	2 ", 3", 4 ", 6", 8 ", 10", 12 ",14"
Application	Pumps, Pumping, Pump Bypass, Pump Management
Product Type	Control Valve, Pressure operated valves
Body	ASTM A-216 Grade WCB
Upper stop	ASTM A-216 Grade WCB
Orifice	Stainless steel 18-8
Flow conditioner	ASTM A351 type CF8M
Spring	17-7 PH Condition CH-900
Bushing retainer	ASTM A479 type 410
Temperature range	- 100 ° f to 550 ° f (- 73 ° C to 287 ° C)
