Yarway

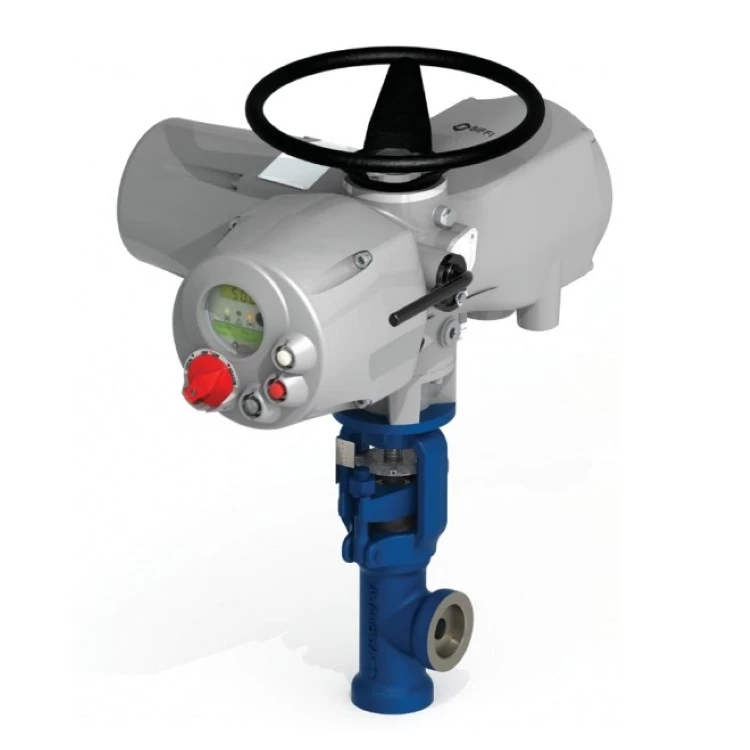

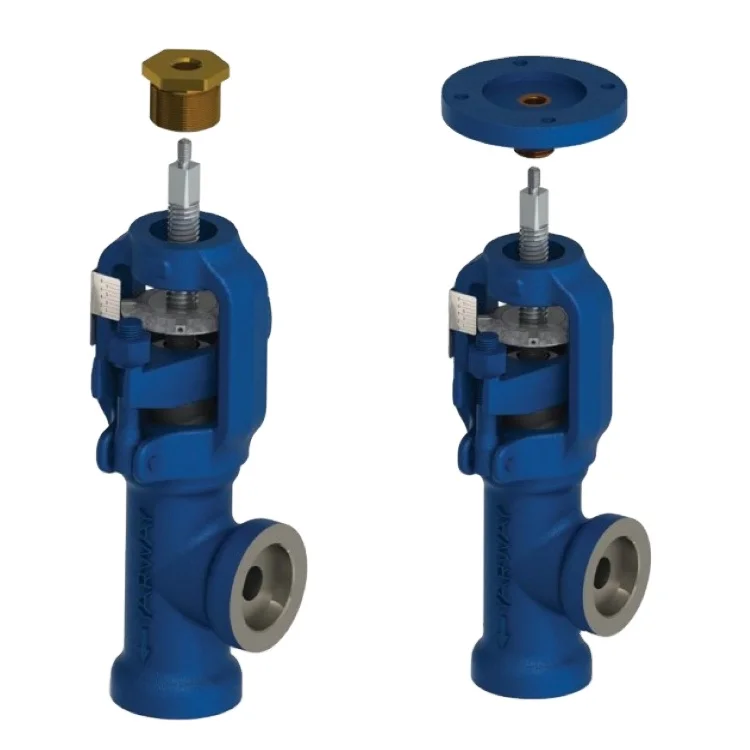

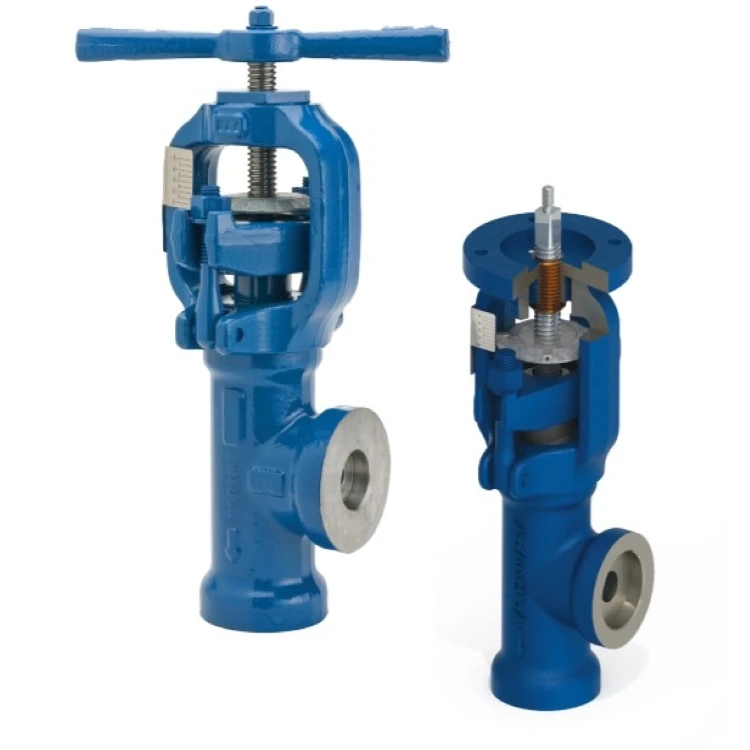

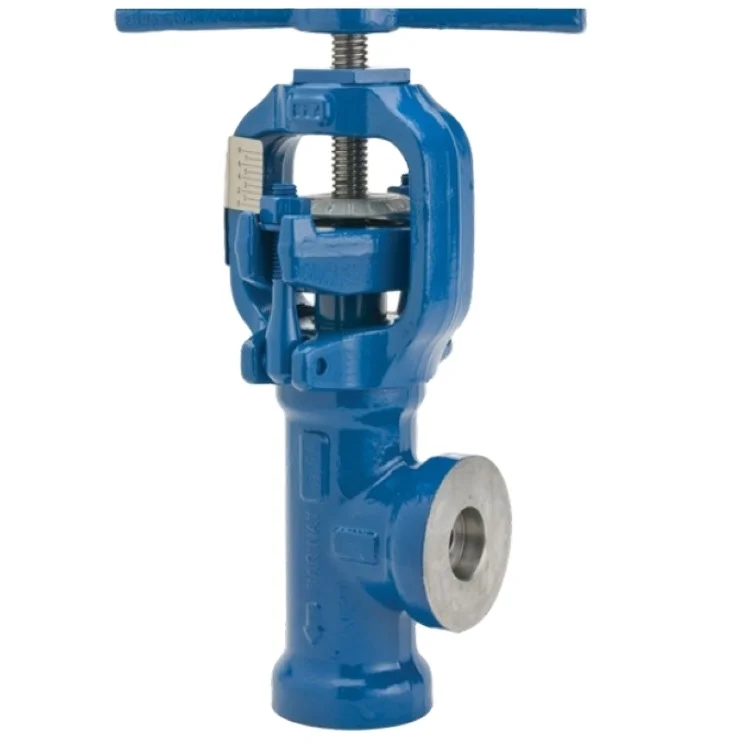

Yarway Hy-Drop Throttling Valve

Controls the destructive forces inherent in high pressure drop service through rapid energy dissipation.

Product Description

Specification

item	value
Warranty	3 years
Type	Pressure Reducing Control Valves
Certification	IECEE
Place of Origin	China
	Shanghai
Brand Name	Yarway
Model Number	5817/5827
Application	General
Temperature of Media	Normal Temperature
Power	Hydraulic
Media	Water
Port Size
Structure	Pressure Reducing
Product name	Pressur valv Hy-Drop stainless steel valve throttling control valve
Size range	NPS 1 and 1 1/2
Pressure class	1700 and 2700 psi
Materials	ASME A105, ASME A182 F22
Body material	ASME SA-182 grade F22 or ASME SA-105
Gland	AISI 4140
Indicator	Aluminum
Split gland bushing	AISI 1018
Indicator bushing	AISI 416
Disc	AMS-5385 (stellite no. 21)
