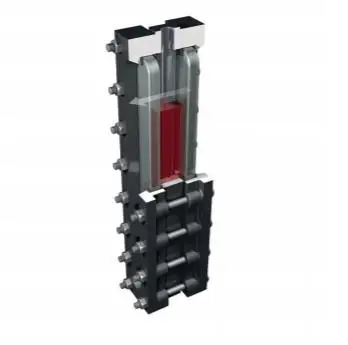

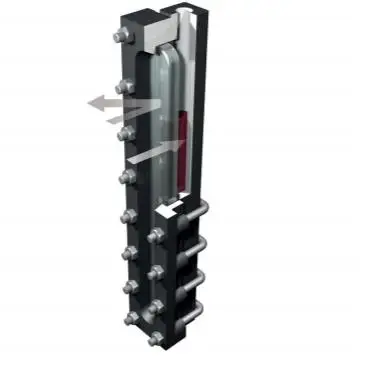

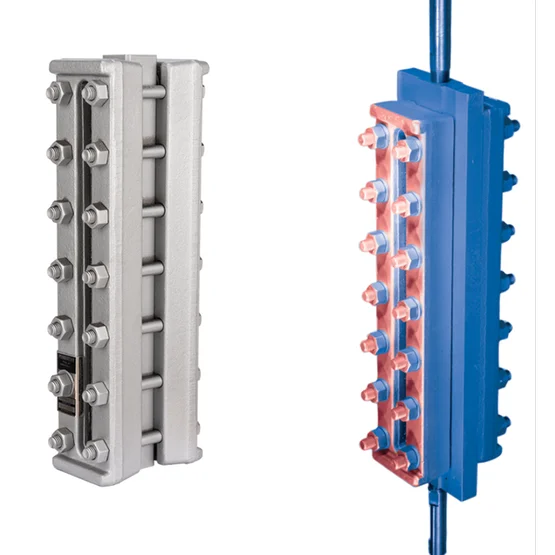

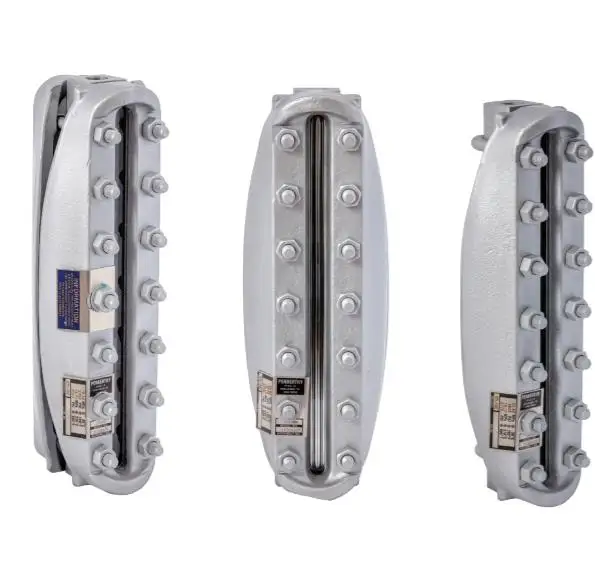

Yarway Series 4300N/4600N Liquid Level Gauge

Armored transparent flat glass liquid level gauges suitable for steam service on boiler drum, feedwater heater and other vessel level indication applications


Product Description


Specification


item

value

Grade

Industrial

Warranty

3 years

Certification

GS, EPA, UL, scoc, IECEE, Reach, pcoc, CSA

Place of Origin

China



Shanghai

Brand Name

Yarway

Model Number

Series 4300N/4600N

Product name

Leveling 4300N/4600N Liquid level Gauge Level Measuring Instruments

Size

1/2" to 3/4"(12.5 to 19 mm)

Max pressures 1

4300: 400 psi(28 bar)

Max pressures 2

4600: 650 psi(45 bar)

Max pressures 3

4800: up to 1500 psi(103 bar)

Max. temperatures

4300:448 °F(231 ℃) 4600:497 °F(258 ℃) 4800:596 °F(313 ℃)

Visibility 1

4300:10 1/4" to 69 1/8"(260 to 1756 mm)

Visibility 2

4600:9" to 58 1/2"(228 to 1486 mm)

Visibility 3

4800:9" to 35 1/2"(228 to 902 mm)

Visibility 4

Visibilities up to 139" (3530 mm) possible.
