Yarway

Yarway Series 5500 Globe Valves for most shut-off applicatio

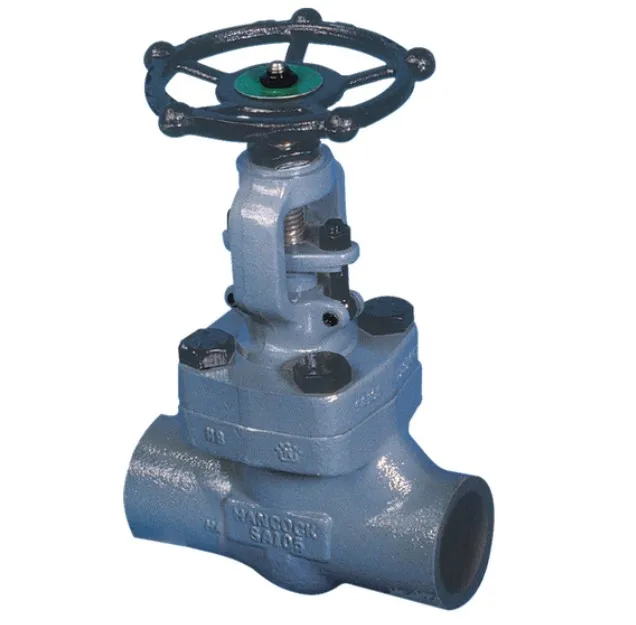

Yarway Series 5500 Globe Valves

Direct contact, metal-to-metal seating, make the globe valve ideal for most shut-off applications.

Product Description

Specification

item	value
Type	Globe Valves
Certification	CSA, pcoc, Reach, IECEE, scoc, UL, EPA, GS
Place of Origin	China
	Shanghai
Brand Name	Yarway
Model Number
Application	General
Temperature of Media	High Temperature
Power	Manual
Media	Base
Structure	BALL
Product name	Ball valve stainless steel Globe valve series 5500 ball valve

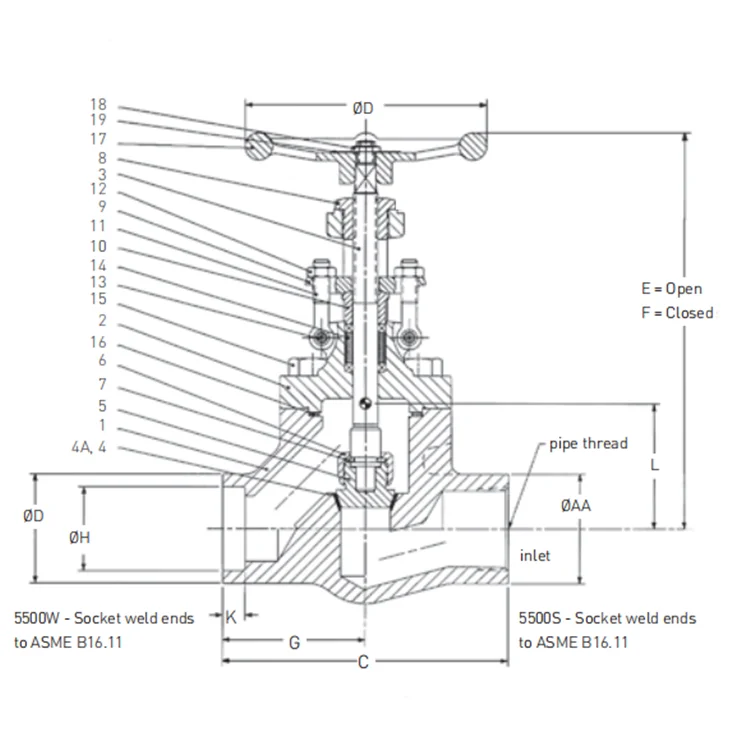

End Connection	Threaded, Socket Weld
Body Design	Short Pattern
Pressure Class	ASME
Process Connection Type	Threaded, SWE
Seat/Seal Type	Metal-to-Metal
Shutoff Class	Class V (FCI 70-2)
Standards	ASME B16.34
Valve Size	NPS 2 / DN 50, NPS 1-1/4 / DN 32, NPS 1-1/2 / DN 40, NPS 1/2 / DN 15
Valve Size Standard	NPS
