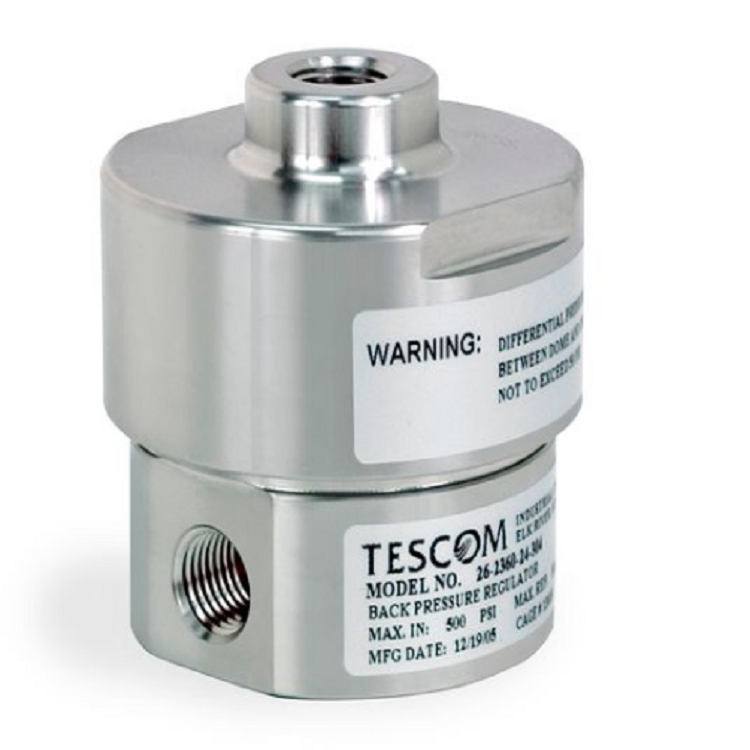

TESCOM 26-2300 Series Back pressure Regulator Hydraulic

TESCOM 26-2300 Series Back pressure Regulator Hydraulic
26-2300 Series is a highly accurate, diaphragm sensed backpressure regulator. It controls pressures up to 500 psig / 34.5 bar and offers many Cvs from 0.02 up to 1.0. Air and dome loaded versions are available for remote operation or for use with the ER5000 Electropneumatic Controller for automation. Ideal for use in hydraulic or pneumatic testing, calibration, and pump discharge pressure control.

item	value
Warranty	1 year
Certification	CSA, pcoc, IECEE
Place of Origin	China
Brand Name	TESCOME
Model Number	26-2300
Pressure Rating	0-50, 0-150, 0-250 psig
Material	Body: 303 Stainless Steel
Operating Temperature	-40°F to 165°F
Port Size & Type	SAE, NPTF, MS33649
Flow Capacity	Cv = 0.60
Load Type	Spring, Air, Dome
Weight	Stainless Steel: 2.25 lbs / 1.0 kg
Weight Aluminum	1.25 lbs / 0.6 kg
