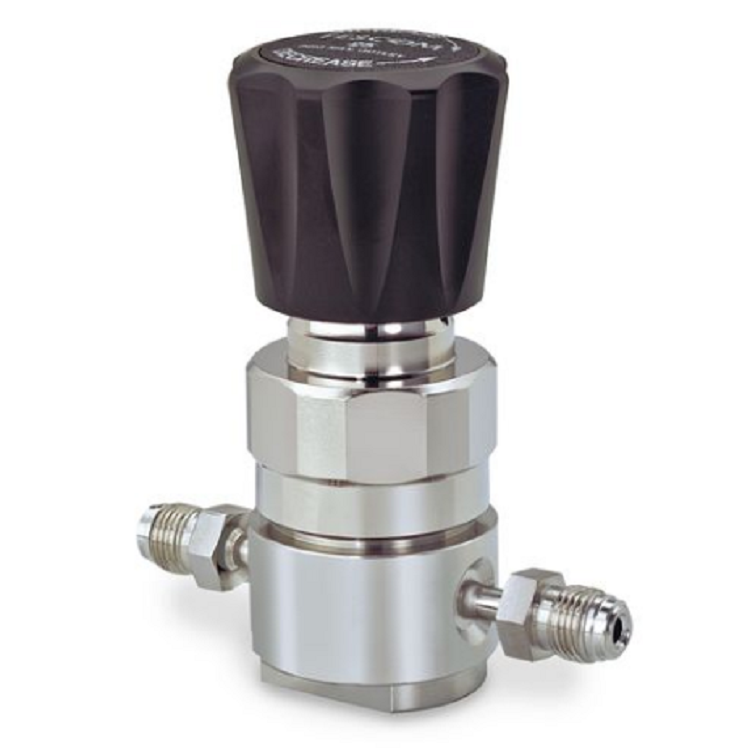

TESCOM 64-2600 Series Electronic Pressure Regulator

TESCOM 64-2600 Series Electronic Pressure Regulator
64-2600 Series economical high purity pressure reducing regulator provides Stainless Steel construction with 10 Ra surface finish and is electronic grade cleaned. Inlet pressures are 600 or 3500 psig / 41.4 or 241 bar with outlet pressures of up to 250 psig / 17.2 bar. Ideal for use in 1/4" point-of-use, gas cabinets, semiconductor manufacturing, valve manifold boxes and research labs.

item	value
Warranty	1 year
Certification	CSA, Reach, IECEE, UL, GS
Place of Origin	China
Brand Name	Emerson
Model Number	54-2100
Maximum Inlet Pressure	15,000 psig / 1034 bar
Control Pressure Ranges	0-500, 0-800, 10-1500, 15-2500,
Material	Body: 316 Stainless Steel
Back-up Ring (Inlet Pressure Ranges)	2500-10,000 psig / 172-690 bar:
Sensor Seal (Inlet Pressure Ranges)	500-10,000 psig / 34.5-690 bar
Operating Temperature	-15°F to 165°F / -26°C to 74°C
Port Size & Type	4, 3/8, 1/2 (NPTF/SAE/MS33649 only
Flow Capacity	Cv = 0.08
Load Type	pring, Dome, Air
Weight	5 lbs / 2.3 kg
