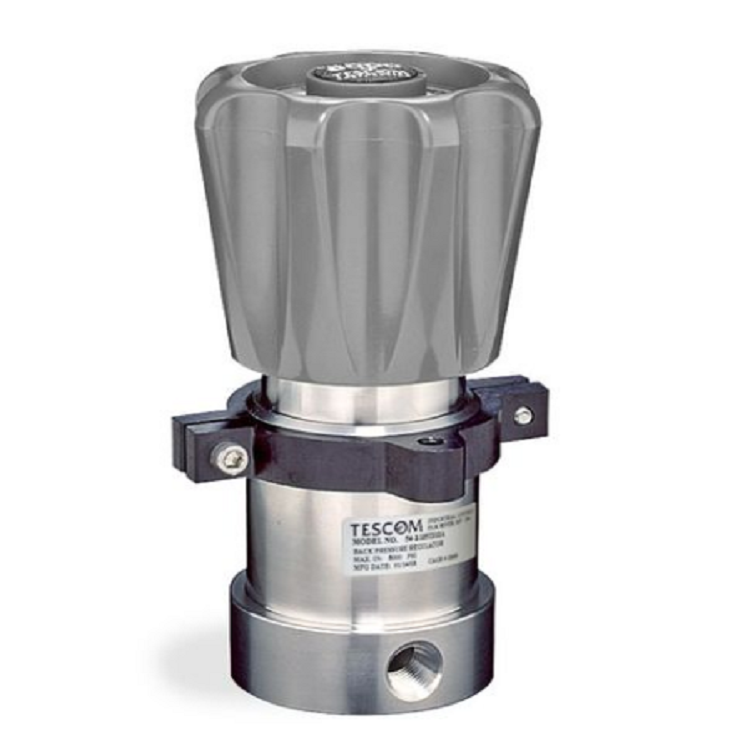

TESCOM 54-2100 Series Backpressure Liquid Regulator
54-2100 Series backpressure regulator is suitable for 15,000 psig / 1034 bar liquid applications. Modifications are also available for 20,000 psig / 1379 bar and 30,000 psig / 2068 bar. Hardened Stainless Steel seat and stem provide excellent wear resistance in harsh applications. Ideal for use in pump discharge pressure control, chemical injection and burst testing.

Specification

item	value
Warranty	1 year
Certification	CSA, Reach, IECEE, UL, GS
Place of Origin	China
Brand Name	Emerson
Model Number	54-2100
Maximum Inlet Pressure	15,000 psig / 1034 bar
Control Pressure Ranges	0-500, 0-800, 10-1500, 15-2500,
Material	Body: 316 Stainless Steel
Back-up Ring (Inlet Pressure Ranges)	2500-10,000 psig / 172-690 bar:
Sensor Seal (Inlet Pressure Ranges)	500-10,000 psig / 34.5-690 bar
Operating Temperature	-15°F to 165°F / -26°C to 74°C
Port Size & Type	4, 3/8, 1/2 (NPTF/SAE/MS33649 only
Flow Capacity	Cv = 0.08
Load Type	pring, Dome, Air
Weight	5 lbs / 2.3 kg
