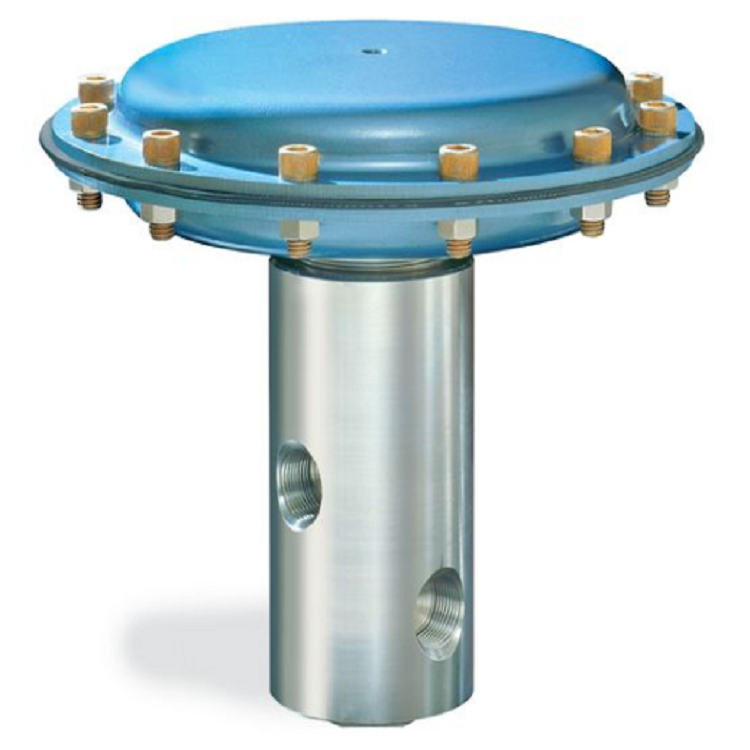

TESCOM 54-2200 Series Pressure Regulator Hydraulic
54-2200 Series pressure reducing regulator is designed for high flow and high pressure hydraulic applications. Inlet and outlet pressure is rated up to 8000 psig / 552 bar with Cv = 2.0 for flows up to 60 GPM / 127 LPM. Spring, air and dome loaded versions are available. Hardened Stainless Steel seat and poppet delivers excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP), hydraulic power units (HPU) and hydraulic component testing.

Specification

item	value
Warranty	1 year
Certification	CSA, pcoc, IECEE
Place of Origin	China
	Shanghai
Brand Name	TESCOME
Model Number	54-2200
Maximum Inlet Pressure	8000 psig / 552 bar
Outlet Pressure Ranges	1500, 3000, 5000, 6000, 8000 psig
Material	303 or 316 Stainless SteelSeat
Bonnet, Remaining Parts	303 Stainless Steel
Temperature	-40°F to 200°F
Port Size & Type	3/4
Flow Capacity	Cv = 2.0
Load Type	Spring, Dome, Air
Weight (approximately)	15 lbs / 6.8 kg
