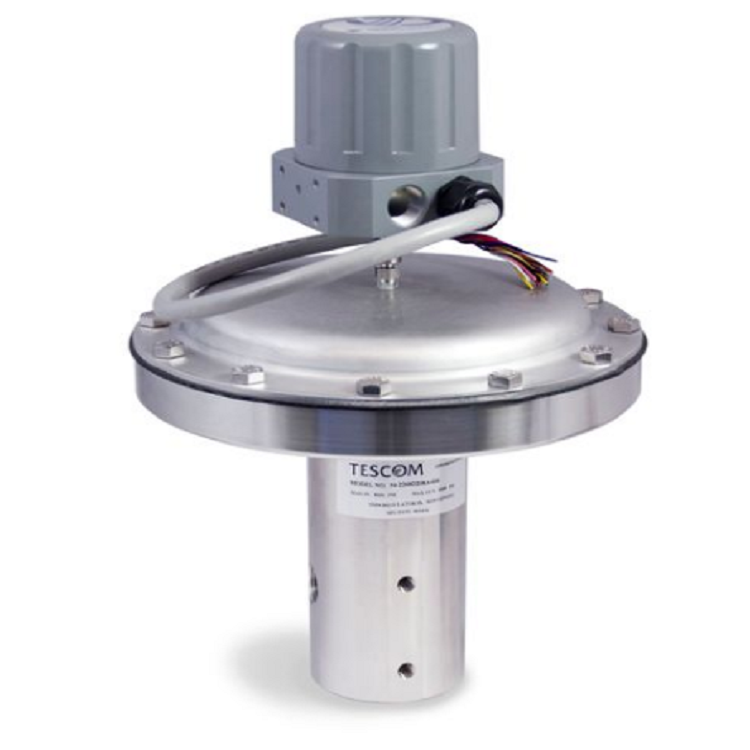

TESCOM 56 Series Regulator provides accurate flow control
56 Series provides accurate flow control that allows customers to have consistent injection rates over the life of the well. It is engineered for offshore chemical injection.

Specification

item	value
Warranty	1 year
Certification	CSA, Reach, IECEE, UL, GS
Place of Origin	China
Brand Name	Emerson
Model Number	TESCOM 56
Maximum Inlet Pressure	15,000 psig / 1034 bar
Control Pressure Ranges	0-500, 0-800, 10-1500, 15-2500,
Material	Body: 316 Stainless Steel
Back-up Ring (Inlet Pressure Ranges)	2500-10,000 psig / 172-690 bar:
Sensor Seal (Inlet Pressure Ranges)	500-10,000 psig / 34.5-690 bar
Operating Temperature	-15°F to 165°F / -26°C to 74°C
Port Size & Type	4, 3/8, 1/2 (NPTF/SAE/MS33649 only
Flow Capacity	Cv = 0.08
Load Type	pring, Dome, Air
Weight	5 lbs / 2.3 kg
